API Server

The AirPhoton API provides a series of centralized services that enable remote communication and operation AirPhoton Products.

The follow sections cover generic API information and details for each of the major API service.

Overview

The server provides user and group access to the API services. Each user will have separate accounts, but multiple users can be grouped together. Users can be a member of multiple groups.

In addition to the user and group functionality, the API server provides access to instruments, control actions, control responses, data, and instrument checkins logs.

Tip

Contact support@airphoton.com if user or group changes are needed.

The endpoints covered below are for the API requests you can make to server. For each request the server may return requested information, accept information provided, or return a URL to request more information. This procedure is very much like a verbal conversation, but the server only uses specific commands and responses. The following sequence diagram illustrates a simple API conversation.

A diagram showing the process flow between two parties, the User and the Server. The User makes a HTTP or API request to the Server. The Server may take time processing the request. Eventually, the Server responds with a HTTP response which is usually textual information.

In many cases, the processing action by the server is nearly instant as the request is for basic, stored information. When the request is, for example, a control request to a remote instrument, there are likely delays as illustrated by the following sequence diagram.

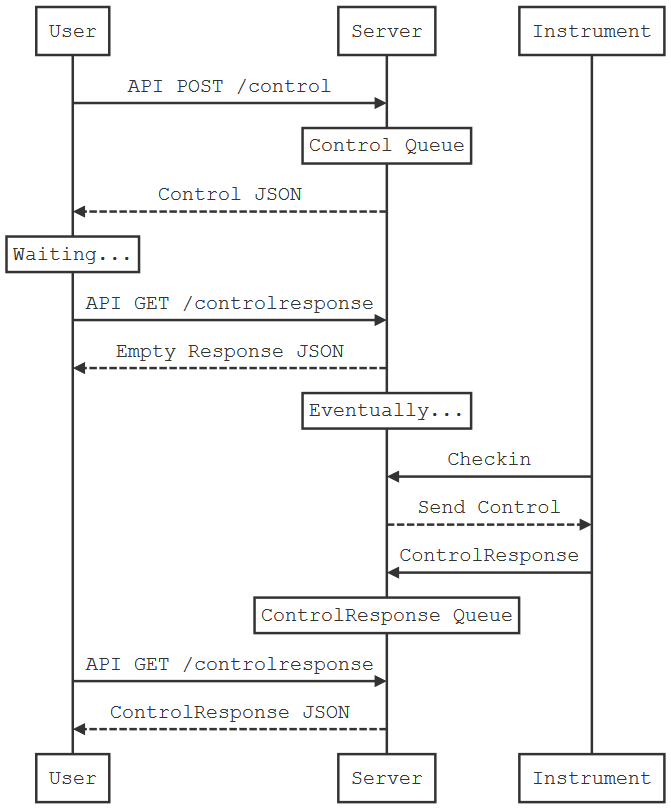

A diagram showing the process flow between three parties, the User, the Server, and the Instrument. The Instrument is always slow to respond. The User makes a HTTP or API request to the server. The Server needs to contact the Instrument. After a delay, the Instrument responds to the Server, and the Server responds to the User.

The following sections cover the API endpoints to send and request information. Keep these diagrams in mind as you explore each functionality.

Getting Started

There are two API servers that can be used. The sandbox server is intended for short-term testing and development, and the production, api server is a long-term production setup. Both servers run the same version, when possible, and are encrypted using HTTPS. The FQDN for each server is provided below:

  • Sandbox Server URL: https://sandbox.airphoton.io

  • Production Server: https://api.airphoton.io

Note

For training and learning, feel free to use the sandbox server, but be sure to use the production server when managing real site setups and campaigns.

The sandbox server is rebuilt periodically with default data and without notice. Please, use it for testing only, and do not store important information on that server.

Things to Know

All of the examples in this documentation will specify the sandbox API server URL. If you want to use the commands in production be sure to change the URL to the production API server.

Virtually all API service endpoints require user authentication, most examples will have [USERNAME] and [PASSWORD]. Be sure to substitute your username and password. More on user credentials below!

In a similar way, if other details need to be substituted, those items will also be in brackets also, such as [UUID].

Tip

If you are curious, a UUID will be assigned to each server resource so it can be uniquely identified. This is what one would look like: b58a8b01-4832-4999-888a-c9617bb7827f

Many commands and responses will use JSON, a commondata format which is easily human readable and writable. In this documentation, the JSON is represented with whitespace for added readability, but the real command responses will not have extra whitespace.

Finally, the sandbox server has specific users, groups, instruments, and more populated by default for testing. Some of the examples in this documentation such as users Functionality below, will return the same or very similar information every time. Other examples, especially new control actions commands will return unique UUIDs, and the errors and responses may vary. Be sure to understand how each of these commands work and change!

API Versions

The API URL has a version in the path so future changes can be managed.

Currently, the API server only supports /v1. For the sandbox server, the base URL is https://sandbox.airphoton.io.

Testing the API Server

Even before you get user access, the server can be pinged to test that the API system is on-line and operational.

The following example command sends a simple request to the sandbox API server:

curl -I https://sandbox.airphoton.io/v1/ping/

The server should return a response similar to below:

HTTP/2 200
content-type: text/html; charset=utf-8
date: Wed, 01 Jan 2020 00:00:00 GMT
server: Caddy
server: gunicorn/20.0.4
c-content-type-options: nosniff
x-frame-options: DENY
content-length: 28

Tip

Try pinging the production server by changing the URL!

Note

While the above example uses the common command line tool, curl, there are many ways to perform HTTP requests.

Another good resource for manual API usage is Postman.

AirPhoton has also provided an example Python script to demonstrate the API process.

API Access

Besides the ping test, all other API access requires user credentials. This applies to both the sandbox and production servers.

Tip

Contact support@airphoton.com for user access, and be sure to specify the project manager and groups to which you would like access.

users Functionality

This is an object representing an API user account. You can retrieve properties of a user.

ENDPOINTS

GET /v1/users/:id
GET /v1/users/?:query

Attributes

url
the full URL representing user :id
username
string
the accounts username for authentication
email
string
the accounts contact email
is_staff
boolean
enables Portal access
groups
array of URLs
list of accessible API groups

Example: Retrieving Your Account

This example retrieves account information for the specified :id.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/users/[:id]

Response

1
2
3
4
5
6
7
8
9
[{
    "url": "https://sandbox.airphoton.io/v1/users/3/",
    "username": "demo@airphoton.io",
    "email": "",
    "is_staff": true,
    "groups": [
        "https://sandbox.airphoton.io/v1/groups/1/"
    ]
}]

Example: Searching for Your Account

This example retrieves account information by searching for a username.

Command

curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/users/?username=[USERNAME]

Response

1
2
3
4
5
6
7
8
9
[{
    "url": "https://sandbox.airphoton.io/v1/users/3/",
    "username": "demo@airphoton.io",
    "email": "",
    "is_staff": true,
    "groups": [
        "https://sandbox.airphoton.io/v1/groups/1/"
    ]
}]

groups Functionality

This is an object representing an API user access group. You can retrieve properties of the group.

ENDPOINTS

GET /v1/groups/

Attributes

name
string
the group’s name

Example: Listing Your Groups

This example retrieves a list of your groups.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/groups/

Response

This response uses pagination and returns the result selection as a list under the results field.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
{
    "count": 1,
    "next": null,
    "previous": null,
    "results": [
        {
            "name": "Demonstration"
        }
    ]
}

instruments Functionality

This is an object representing an AirPhoton instrument assigned to your group. You can retrieve and modify properties of the instrument.

ENDPOINTS

GET /v1/instruments/
GET /v1/instruments/:uuid
GET /v1/instruments/?:query

Attributes

url
the full URL representing instrument :uuid
serial_number
string
the instrument’s serial number
this acts as the instrument’s username for the remote access API
name
string
a common name for end-user usage
group
string
the group URL assigned to the instrument
status
string
a status field for end-user usage
info
json object
a json object for end-user usage

Example: Listing Instruments

This example retrieves a list of instruments assigned to your groups.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/instruments/

Response

Keep in mind that the returned data structure for searches include pagination and a results list.

Note

In this example, the instrument’s UUID is located at the end of the returned url. https://sandbox.airphoton.io/v1/instruments/[UUID]

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
{
    "count": 2,
    "next": null,
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/instruments/c2588574-678f-45ad-ab6d-8f5195ce5bb6/",
            "serial_number": "SS5027",
            "name": "SS5027",
            "group": "https://sandbox.airphoton.io/v1/groups/1/",
            "status": "DEMO",
            "info": {}
        },
        {
            "url": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
            "serial_number": "SS5013",
            "name": "SS5013",
            "group": "https://sandbox.airphoton.io/v1/groups/1/",
            "status": "DEMO",
            "info": {}
        }
    ]
}

Example: Accessing a Specific Instrument

This example retrieves properties for the specified instrument.

Command

Using an instrument’s id from the Example: Listing Instruments in the following command:

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/instruments/[UUID]/

Response

1
2
3
4
5
6
7
8
{
    "url": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
    "serial_number": "SS5013",
    "name": "SS5013",
    "group": "https://sandbox.airphoton.io/v1/groups/1/",
    "status": "DEMO",
    "info": {}
}

Note

Notice how it is the same information from the prior example, but for only a single requested instrument.

For instruments this command is not too useful, but when used with control actions, control responses, data, and checkins, we can use this method to check the status of a new, specific, pending item.

Example: Searching for a Specific Instrument

This example retrieves an instrument’s properties by searching for its serial_number.

Command

Using an instrument’s serial_number in the following command. If you don’t know it, pick one from the Example: Listing Instruments.

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/instruments/?serial_number=[SERIALNUMBER]

Response

The information in this example is the same as if you requested the instrument using UUID, but we used the real-life serial_number to lookup the details.

Keep in mind that the returned data structure for searches include pagination and a results list.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{
    "count": 1,
    "next": null,
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
            "serial_number": "SS5013",
            "name": "SS5013",
            "group": "https://sandbox.airphoton.io/v1/groups/1/",
            "status": "DEMO",
            "info": {}
        }
    ]
}

controls Functionality

This is an object representing a control or command to a remote instrument. Posting a new control queues an actions to be send to remote instrumentation. Once created, the returned control’s url can be monitored for status.

Tip

The following control examples require a working Communication Module and a connected AirPhoton Instrument to work.

The server will accept any valid controls posting, but it will not run until the instrument and communication module check in with the server.

If you are testing with your own hardware, please make sure they are properly setup first.

ENDPOINTS

GET /v1/controls/
POST /v1/controls/
GET /v1/controls/:uuid
GET /v1/controls/?:query

Attributes

url
the full URL representing control :uuid
instrument
string
URL for instrument to control
name
string
a common name for end-user usage
status
string
allowed: new, seen, completed
the current state of the control
created_by
string
URL for submitting user
command
string
the plain-text command to be relayed. See COM100 commands.

Example: Sending a Basic Command

This example posts a new control to the server’s queue to be issued to the target instrument on the next instrument check-in.

Sending controls to instruments require creating a JSON object. First we will explore the JSON to be sent, and the actual command.

Here is the example JSON object.

1
2
3
4
5
6
{
    "instrument": "[INSTRUMENT-URL]",
    "created_by": "[USER-URL]",
    "name": "api demo",
    "command":"sendcommand echo Science!"
}

Lets explore the various components.

The instrument field is the full API server URL for that instrument. Compare this to the command from Example: Accessing a Specific Instrument.

The created_by field is the full API server URL for your user profile. See the command response from users Functionality. You want to supply your user profile URL.

The name field is a common name for your reference.

The command field is the command to be sent. In this example, the command is sendcommand echo Science!.

Tip

An echo command is basically asking the end device to repeat what we say. It is a common way to check connectivity.

In this example, we are asking the communication module (sendcommand) to ask the instrument the command: echo Science!.

The expected result, is the instrument relays echo Science! back to the communication module which will then update the remote API server.

Command

Important

The following example has issues on Windows for both cmd.exe and PowerShell. If you these systems, look into “Quote Escaping”

1
2
3
4
5
6
7
8
# NOTE:
# This command has the [INSTRUMENT-URL] and [USER-URL] pre-populated.
# Make sure you change these.
#
curl --user [USERNAME] \
--request POST https://sandbox.airphoton.io/v1/controls/ \
-H "Content-Type: application/json" \
-d '{"instrument":"https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/","created_by":"https://sandbox.airphoton.io/v1/users/3/","name":"api demo","command":"sendcommand echo Science!"}'

Note

In the above example, backslashes are used to spread the command over multiple lines for readability.

Important

This command is telling the server to do something. While it is a small change, the command uses --request POST instead of --request GET as in most other examples.

POST is used on an API endpoint to create something.
GET is used on an API endpoint to access something.

There are more options, but we will use GET and POST for now.

Response

As covered in Things to Know, this control action will generate a new control UUID every time! Take note of how your response is different compared to the following example response:

1
2
3
4
5
6
7
8
{
    "url": "https://sandbox.airphoton.io/v1/controls/03654371-4533-47da-943e-b8bd79a86861/",
    "instrument": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
    "name": "api demo",
    "status": "new",
    "created_by": "https://sandbox.airphoton.io/v1/users/3/",
    "command": "sendcommand echo Science!"
}

Note

In the above example, the UUID of the control is located at the end of url. https://sandbox.airphoton.io/v1/controls/[UUID]

Take note how the status field says new immediately after creating the command. We can monitor the status field to know when the command has been seen or completed. In the next subsection we will continue this example.

Example: Checking the Status of a Command

Continuing from the previous subsection, lets explore how to monitor the status of a control we created.

If needed go back to Example: Sending a Basic Command, and rerun the example. Be sure to copy the url from the results provided as the url will be used in the example below. Also, realize that your URL will differ since the a new UUID is provided every time a control is created.

Command

curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/controls/[UUID]

Response

When the command was first issued, the status field reported new. Depending on how responsive the server and remote communication module are, you may see a few different options. See the Attributes list above.

As a result of the above command, the server response shows the command has been completed!

1
2
3
4
5
6
7
8
{
    "url": "https://sandbox.airphoton.io/v1/controls/03654371-4533-47da-943e-b8bd79a86861/",
    "instrument": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
    "name": "api demo",
    "status": "completed",
    "created_by": "https://sandbox.airphoton.io/v1/users/3/",
    "command":"sendcommand echo Science!"
}

Up to this point, you have been interacting with the API server, but now that the control action is completed, we have made contact with the remote instrument and likely have a controlresponse waiting for us. Checkout controlresponses Functionality too see how to access the responses resulting from a posted control.

Example: Listing Controls

This example retrieves a list of controls issued for instrument in your group.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/controls/

Response

Keep in mind that the returned data structure for searches include pagination and a results list.

Note

The following example has been truncated.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
{
    "count": 962,
    "next": "https://sandbox.airphoton.io/v1/controls/?limit=100&offset=100",
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/controls/873dbfeb-e273-44df-8f7c-b10a3954876a/",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/c2588574-678f-45ad-ab6d-8f5195ce5bb6/",
            "name": "api demo",
            "status": "completed",
            "created_by": "https://sandbox.airphoton.io/v1/users/3/",
            "command": "sendcommand echo Science!"
        },
        {
            "url": "https://sandbox.airphoton.io/v1/controls/b2de5ef3-b55f-47bb-992d-2a9a0056f9b3/",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/c2588574-678f-45ad-ab6d-8f5195ce5bb6/",
            "name": null,
            "status": "completed",
            "created_by": "https://sandbox.airphoton.io/v1/users/3/",
            "command": "status"
        },
        {
            "url": "https://sandbox.airphoton.io/v1/controls/223437c9-7c5c-4642-86fc-76b207de3eb0/",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/c2588574-678f-45ad-ab6d-8f5195ce5bb6/",
            "name": null,
            "status": "completed",
            "created_by": "https://sandbox.airphoton.io/v1/users/3/",
            "command": "sendmlcommand ENDSTATUS status"
        }
    ]
}

controlresponses Functionality

This is an object representing a controlresponse. The response received after a remote instrument processes a control.

ENDPOINTS

GET /v1/controlresponses/
GET /v1/controls/:uuid
GET /v1/controls/?:query

Attributes

url
the full URL representing controlresponse :uuid
created_time
ISO-8601 string
the UTC time stamp at check-in
control
string
URL for linked control
error
string
optional, error message from remote instrument
response
json object
instrument response
currently, only text string

Example: Checking a Control’s Response

The following example will continue from the above Example: Checking the Status of a Command section.

To view the results of the remote command sendcommand echo Science!, we need to request the controlresponse related to the control action’s UUID. If needed go back to Example: Sending a Basic Command and Example: Checking the Status of a Command and rerun the examples. Be sure to copy the uuid from the url field in the results provided.

Command

curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/controlresponses/?control=[UUID]

Response

If the control action is completed, the server will response with the controlresponse associated with the control UUID.

As covered in Things to Know, this controlresponse, similar to control actions will generate a new UUID every time! Take note of how your response is different compared to the following example response:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
{
    "count": 1,
    "next": null,
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/controlresponses/a13e3b3e-4ca9-492e-b711-a635fc094c97/",
            "created_time": "2020-11-23T16:58:08.637790Z",
            "control": "https://sandbox.airphoton.io/v1/controls/873dbfeb-e273-44df-8f7c-b10a3954876a/",
            "error": "",
            "response": {
                "text": "Instrument:echo Science!\r\n"
            }
        }
    ]
}

Here you can see that there was no error, and that the response is Instrument:echo Science! as expected!

checkins functionality

This is an object representing a log event when an instrument checkins with the remote API server. You can retrieve properties for each checkins event.

ENDPOINTS

GET /v1/checkins/
GET /v1/checkins/?:query

Attributes

url
the full URL representing checking event :uuid
created_time
ISO-8601 string
the UTC time stamp at check-in
instrument
string
URL for instrument checking in
control
string or null
optional, URL for associated control handled at check-in

Example: Listing Recent Check-ins

This example retrieves a list of check-in events for all instruments assigned to your groups. Check-in events are numerous, so the pagination features could be very useful.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/checkins/

Response

Note

The following example has been truncated.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
    "count": 22053,
    "next": "https://sandbox.airphoton.io/v1/checkins/?limit=100&offset=100",
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/checkins/6e35c846-da5a-43a0-83ca-a577a9440d6b/",
            "created_time": "2021-01-20T21:25:51.966667Z",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": null
        },
        {
            "url": "https://sandbox.airphoton.io/v1/checkins/105b1cb8-e2e0-4f66-bb39-6ff8dd7f4522/",
            "created_time": "2021-01-20T21:08:05.887223Z",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/6ec7e88d-1400-4eed-98d7-aef431054101/"
        },
        {
            "url": "https://sandbox.airphoton.io/v1/checkins/5e1e1e07-4720-48a8-9ee1-df57b6cf50d8/",
            "created_time": "2020-11-24T17:01:43.209274Z",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
        }
    ]
}

Example: Listing Check-ins for an Instrument

This example retrieves a list of check-in events for the specified instrument. Check-in events are numerous, so the pagination features could be very useful.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/checkins/?instrument=[UUID]

Response

Keep in mind that the returned data structure for searches include pagination and a results list.

Note

The following example has been truncated.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
{
    "count": 17324,
    "next": "https://sandbox.airphoton.io/v1/checkins/?instrument=51e38515-3fb6-4f00-838b-7fea3cadc42f&limit=100&offset=100",
    "previous": null,
    "results": [
        {
            "url": "https://sandbox.airphoton.io/v1/checkins/a7185f92-c016-430f-ae65-006c0cfa118e/",
            "created_time": "2020-11-24T17:01:48.261776Z",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
            "control": null
        },
        {
            "url": "https://sandbox.airphoton.io/v1/checkins/5e1e1e07-4720-48a8-9ee1-df57b6cf50d8/",
            "created_time": "2020-11-24T17:01:43.209274Z",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/51e38515-3fb6-4f00-838b-7fea3cadc42f/",
            "control": null
        }
    ]
}

data Functionality

This is an object representing a file which is often instrument data uploaded remotely. It is also a place to upload scripts to be downloaded to the instruments.

Important

The /data endpoint is not in production yet.

ENDPOINTS

GET /v1/data/
POST /v1/data/
GET /v1/data/?:query

Attributes

url
the full URL representing the data :uuid
instrument
string
URL for instrument assigned to data
control
string or null
optional, URL for associated control resulting in data
name
string
a common name for end-user usage
info
json object
a json object for end-user usage
datafile
string
partial URL to data file

Example: Listing Data

This example retrieves a list of data for all instruments assigned to your groups.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/data/

Response

Note

The following example has been truncated.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
{
    "count": 11,
    "next": null,
    "previous": null,
    "results": [
        {
            "id": "9434dbbb-5cfe-425e-b7c0-10c62c0887db",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/c2588574-678f-45ad-ab6d-8f5195ce5bb6/",
            "control": "https://sandbox.airphoton.io/v1/controls/fa62d434-838c-4aa0-b6eb-32c6487b0634/",
            "name": null,
            "info": {},
            "datafile": "datafiles/IN0A0003.csv"
        },
        {
            "id": "d8b3b0a2-188d-4146-bd0a-f28ce4ac8470",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/9d5f3edf-d8fc-43f2-b7bd-3c65211a6a87/",
            "name": "",
            "info": {},
            "datafile": "datafiles/script.aps"
        },
        {
            "id": "d79c3e19-0b32-420c-9600-903b2b7dc97f",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/a8b83cbc-4c5c-4975-b205-c16d0d27c605/",
            "name": "",
            "info": {},
            "datafile": "datafiles/script_wApIJSM.aps"
        },
        {
            "id": "6129a399-6cca-4de0-8fa7-5f94acbf6afa",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/ce19f85d-41ac-45c0-b1d5-cf3e6ad4a1f3/",
            "name": "",
            "info": {},
            "datafile": "datafiles/INXX0084.csv"
        }
    ]
}

Example: Listing Data from an Instrument

This example retrieves a list of data for the specified instrument.

Command

1
curl --user [USERNAME] --request GET https://sandbox.airphoton.io/v1/data/?instrument=[UUID]

Response

Keep in mind that the returned data structure for searches include pagination and a results list.

Note

The following example has been truncated.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
{
    "count": 8,
    "next": null,
    "previous": null,
    "results": [
        {
            "id": "d8b3b0a2-188d-4146-bd0a-f28ce4ac8470",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/9d5f3edf-d8fc-43f2-b7bd-3c65211a6a87/",
            "name": "",
            "info": {},
            "datafile": "datafiles/script.aps"
        },
        {
            "id": "d79c3e19-0b32-420c-9600-903b2b7dc97f",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/a8b83cbc-4c5c-4975-b205-c16d0d27c605/",
            "name": "",
            "info": {},
            "datafile": "datafiles/script_wApIJSM.aps"
        },
        {
            "id": "6129a399-6cca-4de0-8fa7-5f94acbf6afa",
            "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
            "control": "https://sandbox.airphoton.io/v1/controls/ce19f85d-41ac-45c0-b1d5-cf3e6ad4a1f3/",
            "name": "",
            "info": {},
            "datafile": "datafiles/INXX0084.csv"
        }
    ]
}

Example: Posting a Script to Data Deployment

This example posts a script on the API server for later remotely download.

Command

1
2
3
curl --user [USERNAME] --request POST http://sandbox.airphoton.io/v1/data/ \
--form 'datafile=@"[FILEPATH]"' \
--form 'instrument="[INSTRUMENT-URL]"'

Response

1
2
3
4
5
6
7
8
{
    "id": "9c411c75-4a1b-4455-a33c-18304e7ed82f",
    "instrument": "https://sandbox.airphoton.io/v1/instruments/03f91ea5-065b-42c5-8b92-534b7815c423/",
    "control": null,
    "name": null,
    "info": {},
    "datafile": "datafiles/2021-02-10-EXAMPLE.aps"
}
